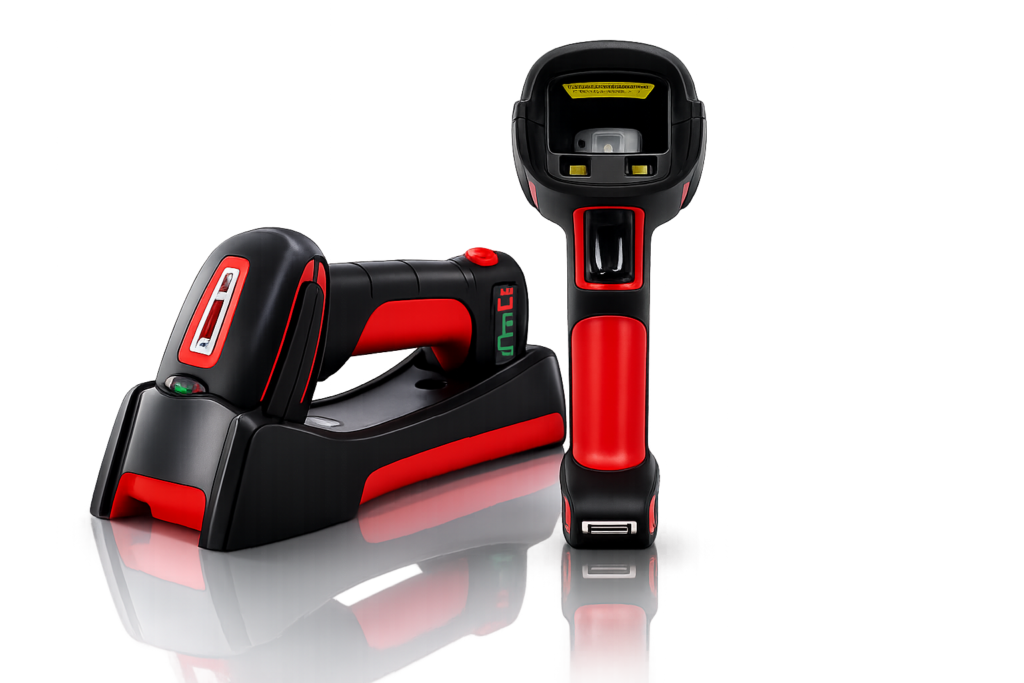

Handheld Barcode Scanner
Intrinsically safe explosion-proof designed for Zone 1, 21
Handheld Barcode Scanner
- High decoding accuracy for nearly all 1D & 2D barcodes
- Ultra-fast scanning up to 500 scans/sec
- Long-range capability – UPC at 2m, 100mil at 24m
- Interfaces: RS232, RS485, Modbus RTU/TCP, Profinet
- IP66/IP65 rugged design for harsh environments
- Withstands 3m drops & 7000+ 1-meter tumble
Wireless Scanner
Wired Scanner
Wireless Scanner
| Parameter | Specification |
|---|---|
| Model | XY100_II |
| Type | Explosion-proof wireless handheld scanner |
| Scanning method | Two-dimensional image scanning (830*640 pixels) |
| Decoding capability | Automatically recognize all standard one-dimensional barcodes and GS1, PDF417, MICROPDF, MaxiCode, DataMatrix, QRCode, UCC, EAN |
| Reading distance | 200~500mm |
| Scanning angle | Horizontal 31.6°; Vertical 24.4° |
| Scanning speed | Up to 200/500 times/second |
| Number of scans | Up to 50,000 scans per charge |
| Communication interface | USB, keyboard wedge, RS232 |
| Host interface – Serial port |
RS232: ASCII free protocol (American Standard Code for Information Interchange) RS485: ASCII free protocol (American Standard Code for Information Interchange) RS485: Modbus_RTU, PROFIBUS_DP |
| Host interface – Network port |
RJ45: Industrial Ethernet MODBUS_TCP (network cable, optical fiber) RJ45: Industrial Ethernet PROFINET (network cable, optical fiber) |
| Power supply | RS232: 5V DC, RS485/RJ45: 24V DC |
| Product weight | Scanner: 410g; Base: 290g; Safety barrier: 200g |
| Ambient temp. | NT: 0~50°C (LT: -30~+60°C optional) |
| Storage temp. | -40° ~ 70°C |
Wired Scanner
| Parameter | Specification |
|---|---|
| Model | XY100_I (Wired) |
| Type | Explosion-proof barcode scanner |
| Scanning Method | Two-dimensional image scanning (830 × 640 pixels) |
| Decoding Ability | Recognizes all standard 1D and 2D barcodes: GS1, PDF417, MICROPDF, MaxiCode, DataMatrix, QR Code, UCC, EAN Composites, Postaos, Aztec |
| Reading Distance | 200 mm / 500 mm (optional) |
| Scanning Angle | ER Focus: Horizontal 31.6°, Vertical 24.4° |
| Scanning Speed | Up to 200 / 500 times per second |
| Wireless Scanning (Optional) | 100 m sight range; one base supports 7 scanners via Bluetooth |
| Serial Port Interface | RS232 (ASCII free agreement), RS485 (ASOI agreement) |
| Network Port Interface | RJ45 (Ethernet MODBUS_TCP / PROFINET) |
| Communication Protocols | Modbus RTU, PROFIBUS_DP, MODBUS_TCP, PROFINET |
| Power Supply | RS232: 5 VDC; RS485: 24 VDC; RJ45: 24 VDC |
| Operating Temperature | -30 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Environmental Humidity | 0 – 95% RH (no condensation) |
| Protection Level | IP65 |
