Zone 1 HMI
HMI
Operating and monitoring systems
SERIES 300 Device platform
EAGLE PM ET-336-TX
• Operator Interface for panel mounting
• 15″ display, 1024 x 768 pixels with resistive foil touch screen
• 8 function keys
• Zone 1, 2, 21, 22 und Division 2, can be installed in hazardous areas without additional enclosure
• Data is transmitted via Ethernet as 10/100Base-TX via CAT5 cable up to 100 m.
Thin Client SERIES 500
•Device platform MANTA
• OS ET-577-TX
Thin Client SERIES 500
•Device platform MANTA
• OS ET-577-TX
• Thin Client Operator Station, 24″ display, Full HD 1920 x 1080
• Zone 1, 2, 21, 22, stainless steel enclosure IP66, optional acc. to GMP
• Optional resistive glass or foil touch screen
• Data is transmitted via Ethernet as 10/100Base-TX via CAT7 up to 100 m
Panel PC SERIES 400
Device platform MANTA
OS ET-477-TX
• Panel PC Operator Station, quad core ATOM E3845, 24″
display, full HD 1920 x 1080
• Zone 1, 2, 21, 22, stainless steel enclosure IP66, optional acc.
to GMP
• Optional resistive glass or foil touch screen
• Data is transmitted via Ethernet as 10/100Base-TX via
CAT7 up to 100 m
Our Zone 1 HMI /Explosion-protected HMIs are suitable for all types of application – indoor and outdoor applications in process automation, machine operation and in harsh environments such as on drilling rigs.
They are all at least certified for Zones 1, 21 / 2, 22 / Class I, Div 2, and certain versions also for Div 1.

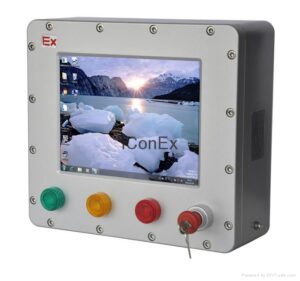

Zone 1 HMI

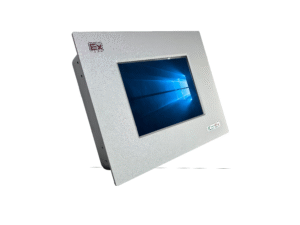

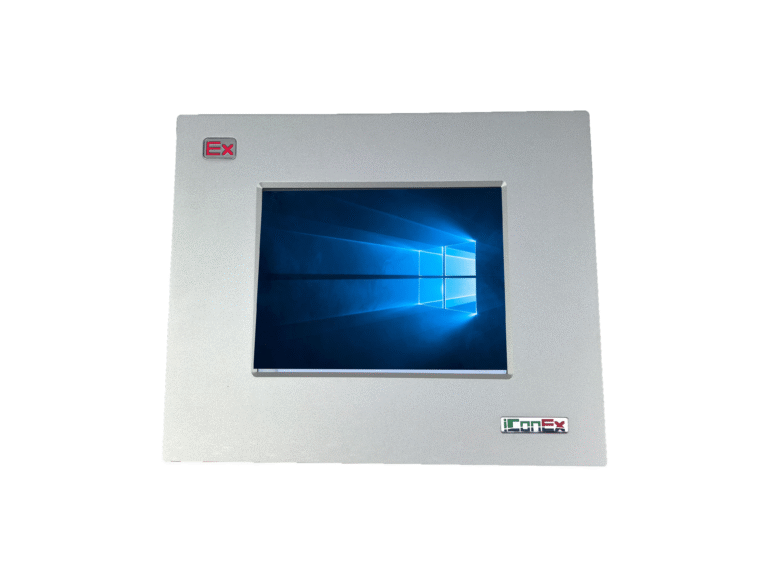

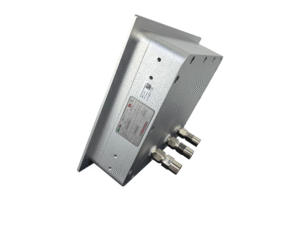

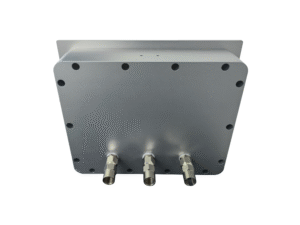

iConEx XY800_DR series
iConEx XY800_DR series HMI is an explosion-proof touch control terminal. It adopts high-performance 32-bit 800MHz RISC CPU and streamlined LINUX kernel, supports direct communication with most PLCs, and its outstanding processing speed and rich software functions can meet the needs of most users. The integrated design is nice and generous, and it is widely used in information and automation control systems in explosive hazardous areas in petroleum, chemical, pharmaceutical, military and other industries.
Benifits of
iConEx XY800_DR series HMI
- All-metal housing, whole device explosion-proof design,for Zone 1, 21, and H2 environment.
- 7″ to 22″ multiple display sizes optional.
- Intrinsically safe Ex i touch screen, ESD protected, can be operated in explosive area directly.
- High-performance 32-bit 1GHz RISC CPU, fast processing capability.
- Powerful XYFD2000 configuration software function, support C language macro scripts
- Supports main PLC:Siemens, Schneider, Beckhoff, Rockwell, Omron, Keyence, Mitsubishi, etc.
- Supports TCP/IP, Modbus TCP, QMTT, OPC UA, Codesys Free Tags, My SQL, etc.
- Supports Profibus-DP, MPI bus communication, MPI multi-screen multi-machine networking
- Can be equipped with external explosion-proof USB sleeve,external USB data access.
- Industrial-grade design, IP66 for whole device, max. ambient temp. range: -40~60℃.
- Embedded installation facilitates different explosion-proof type requirements.
